Ⅰ、Product Description

1. The short arm length has excellent lifting performance. 30m long arm tip can be suspended 9t. and the PC building construction has strong adaptability.

2. The maximum lifting capacity is 10t/12t and the lifting speed is 80m/min, leading the industry.

3. The boom length  reaches to 17 combinations , which is abundant.The length of lifting arm is 30m～70m, 2.5m variable arm length.

4. The tower body is equipped with 2m fishtail plate type standard section, and equipped with an inclined ladder, which is safe and convenient.

5. The structural parts are highly interchangeable, the quick-installation large platform, the telescopic wall attachment have a wide range of uses, and the heavy-duty plugs are quick-installation connections for easy installation.

6. Integrated Cab, electric control system built-in, double independent brand air conditioner, wide vision, safe and comfortable.

7. The platform, ladders and railings are all galvanized, and the walking platform is designed to be anti-slip and anti-corrosion and rust-proof during its life cycle.

8. It adopts full frequency conversion speed regulation, instantaneous response to start and stop, anti-sway throughout the process, and the electronic control system intelligently detects and protects the anti-sliding hook. It can follow the load and speed, and intelligently improves efficiency.

9. Millimeter-level ant-speed positioning, minimum 3mm/s, instant response to inching, and good control performance.

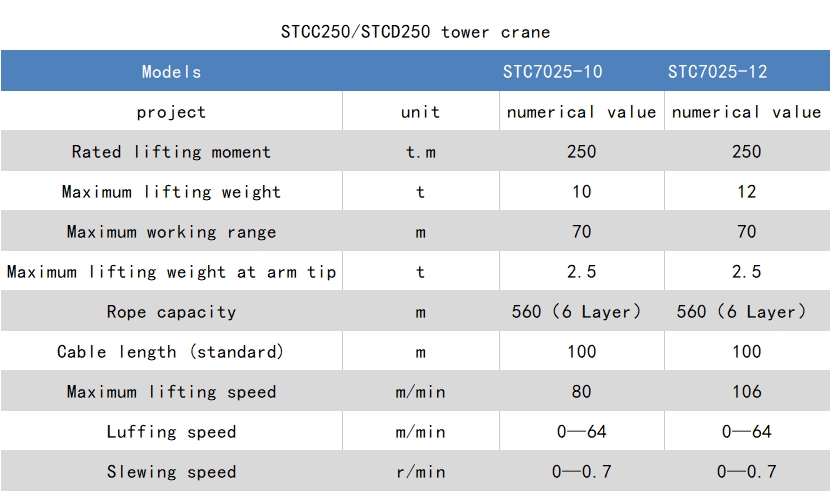

Ⅱ、Product parameters

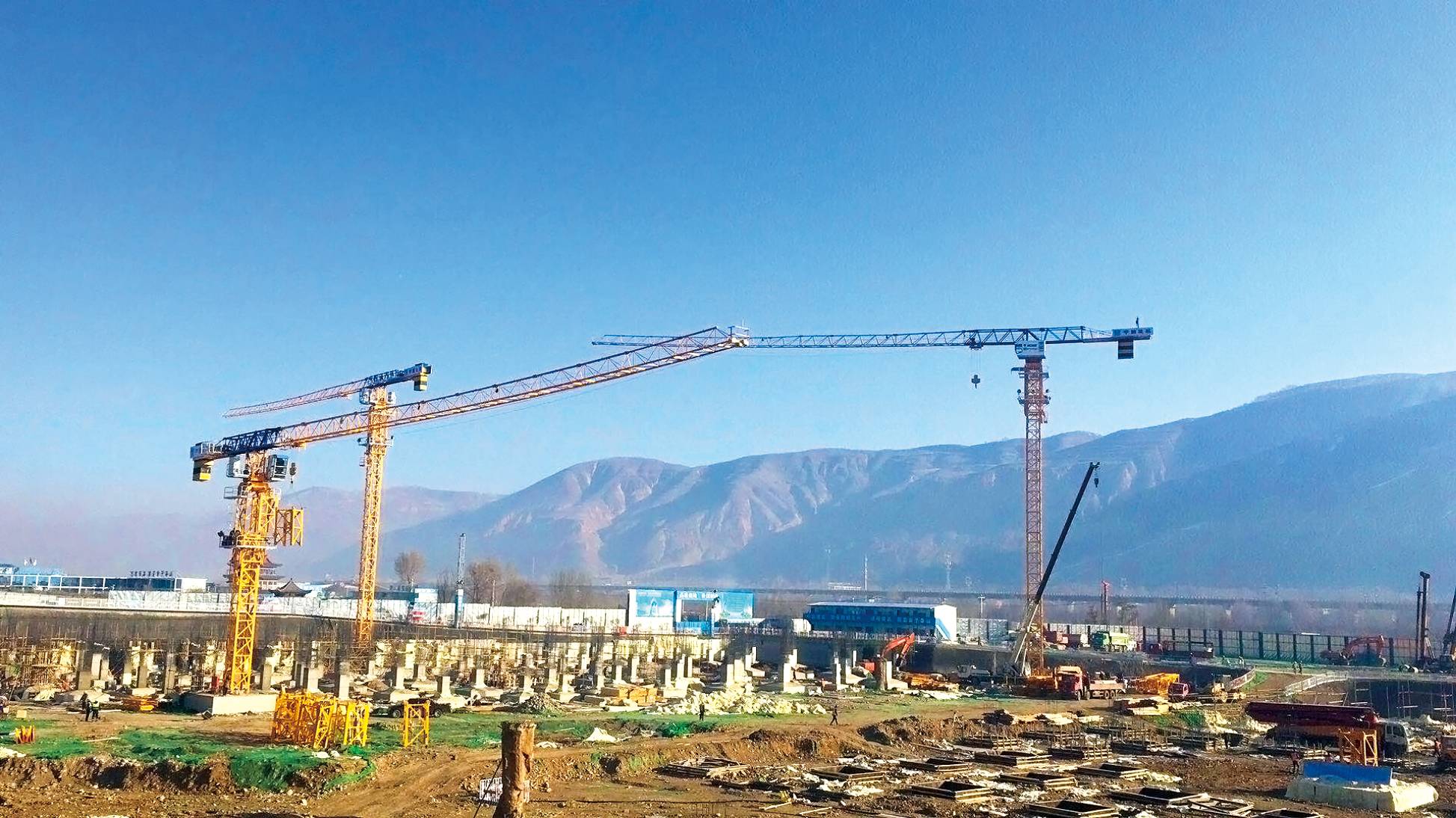

Ⅲ、Construction Case
